The UWB Creator Kit is a solution designed for developers, researchers, and professionals in IoT and robotics who require ultra-precise indoor positioning.
It enables real-time location tracking with an accuracy of less than 10 cm, making it ideal for a wide range of applications from PoC development to research projects.
Original price was: ₩642,000.₩535,000Current price is: ₩535,000.
KRW
USD
The UWB Creator Kit is a development kit for ultra-wideband (UWB) indoor positioning, designed for various research and development applications. This kit provides high-precision real-time location data.
The kit includes 3 UWB anchors, 1 developer tag, Listener 1 and Bracket 3EA. The master tag connects to a computer, Raspberry Pi, or Arduino via USB or I2C. It collects location data from all remote tags, allowing seamless integration with software and libraries for efficient data utilization.
The dedicated software supports real-time location tracking, visualization, location filtering options, and auto-calibration. Additionally, it enables data transmission via MQTT protocol, allowing users to fully control the GrowSpace board through Python or Arduino libraries. Detailed setup instructions can be found in the manual and tutorial guide.
This kit covers an area of 400–800㎡ and supports a maximum update rate of 10Hz, tracking up to 4 tags simultaneously.
• 10–20x higher precision than traditional Wi-Fi, GPS, or Bluetooth-based positioning systems
• Optimized for industrial environments and smart factories
• Up to 10 updates per second in local mode,
• Ultra-fast data streaming and multi-tag tracking support
• 30m coverage in open space
• 400–800㎡ tracking area with 4–5 anchors
• 10–20x higher precision than traditional Wi-Fi, GPS, or Bluetooth-based positioning systems
• Optimized for industrial environments and smart factories
• Up to 10 updates per second in local mode,
• Ultra-fast data streaming and multi-tag tracking support
• 25m coverage in open space
• Indoor tracking up to approx. 37,500 ㎡ with 30 anchors
• Compatible with Raspberry Pi, Arduino, computers, and other devices
• Can be integrated with other IoT technologies such as BLE, Wi-Fi, and LoRa
• Tags and anchors can be added as needed beyond the basic kit configuration
• Additional UWB tags and anchors allow for use in larger and more complex environments
This is a fixed UWB (Ultra-Wideband) positioning device that measures the distance to tags in indoor spaces and provides key data for calculating real-time positions.
1. Anchor 3EA
2. C-type cable 3EA
This is a receiver device in the GrowSpace RTLS system that receives wireless position signals from tags and relays the data to a PC or external devices in real time.
1. Listener1EA
2. C-type cable 1EA
1. Developer 1EA
2. C-type cable 1EA
The kit includes software to configure anchors, tags, and listeners, and to monitor tag movements in real-time.

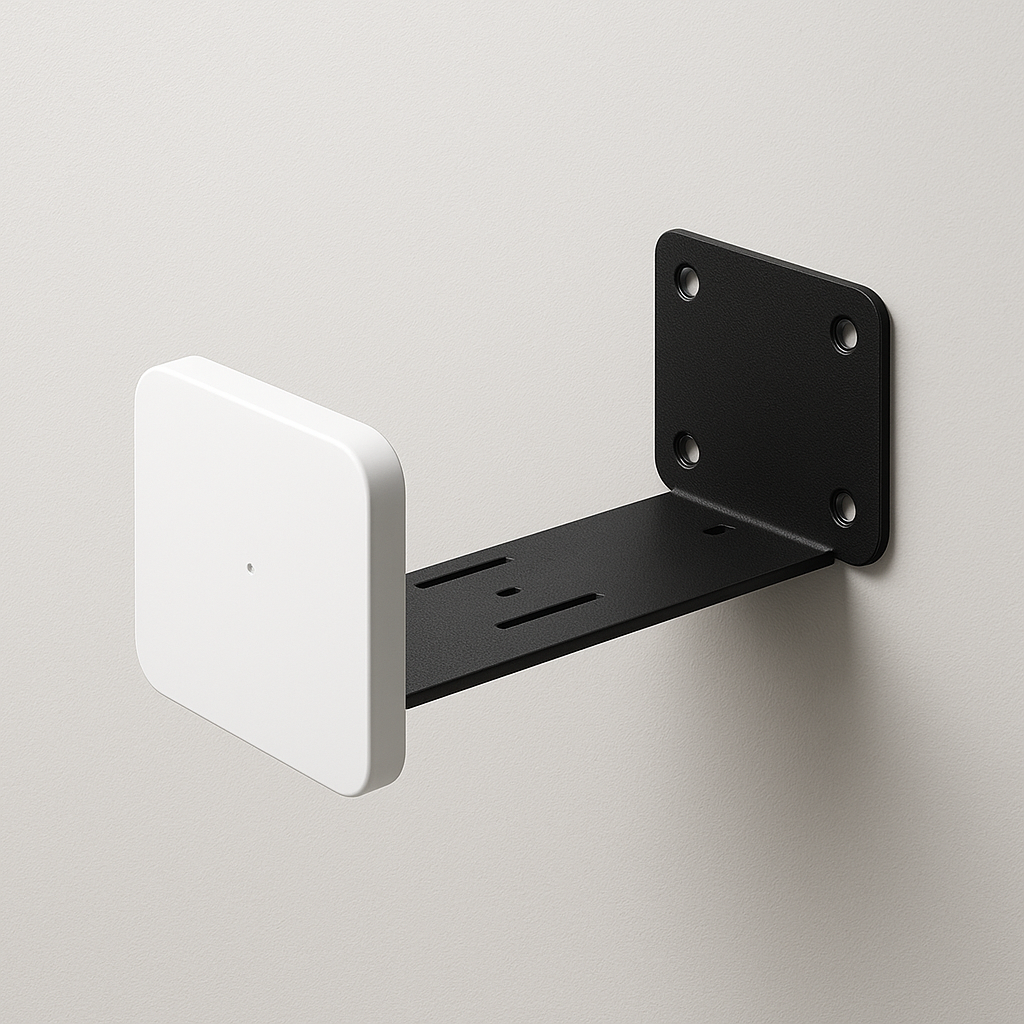

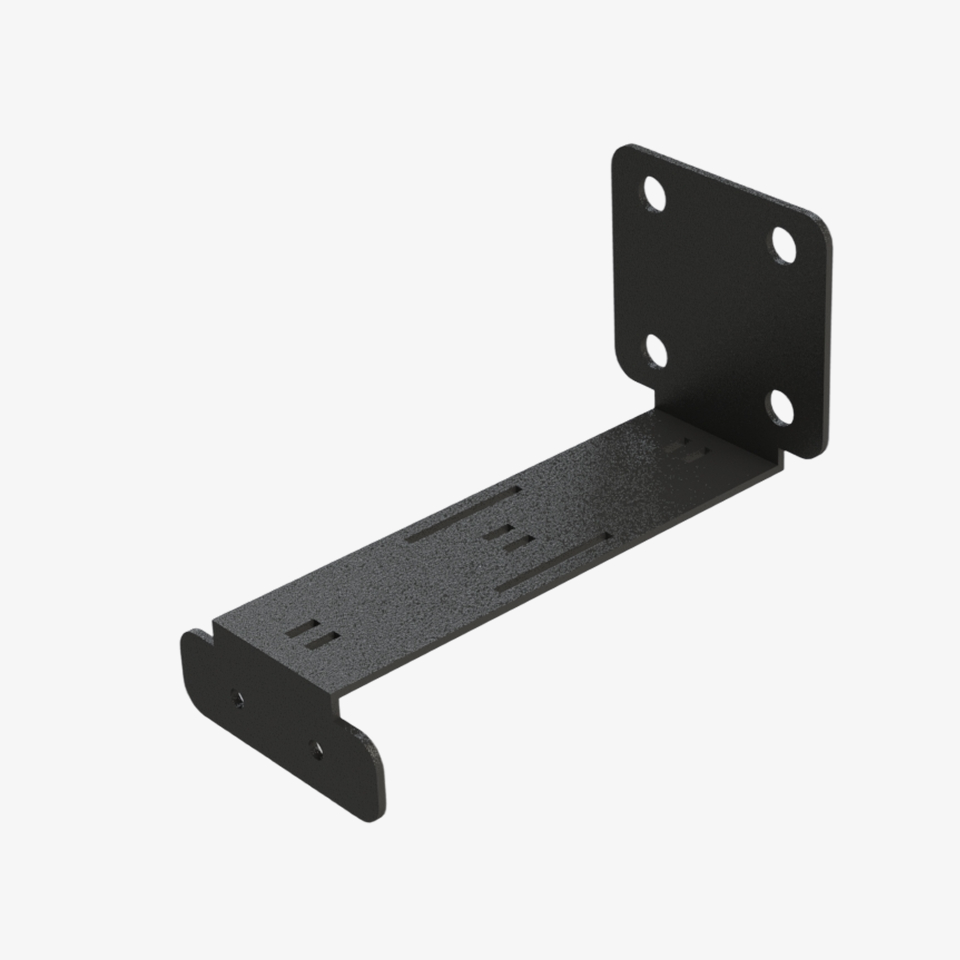

The Bracket is a dedicated mounting bracket designed to securely fix the Anchor in various installation environments. It supports flexible installation on walls, ceilings, and partitions, while ensuring a clearance distance of 10 cm (100 mm) to provide an optimal environment for UWB signal transmission and reception.
1. Bracket 3EA
| Product Name | Anchor | Developer Tag | Listener |
|---|---|---|---|
| Model | Q1-AN-01 | Q1-DT-01 | Q1-LS-01 |
| Communication Method | UWB | UWB | UWB |
| Power Supply | Continuous Power | Continuous Power | Continuous Power |
| Current Consumption | 0.05A(@5v) | 0.01A(@5v) | 0.02A(@5v) |
| Power Connector | USB Type C | USB Type C | USB Type C |
| Data Transmission | - | 1Hz ~ 10Hz | 10Hz |
| Size (mm) | 66×66×11 | 52×49.5×5 | 66×66×11 |
| Outer Material | ABS | - | ABS |
| Error Range | - | 30cm | - |
| Coverage | 20~25m | - | 20~25m |
More Power. Wider Coverage.
✅ Works in Large Spaces
Runs reliably even in wide areas using the MQTT protocol.
✅ Free Software Included
Monitor data and check device status in real time with the free software provided.
✅ Connect to Windows PC
Unlock more features by connecting the gateway to your Windows PC!
