Description
Real-time Relay Device for Transmitting Tag and Anchor Data to the Server

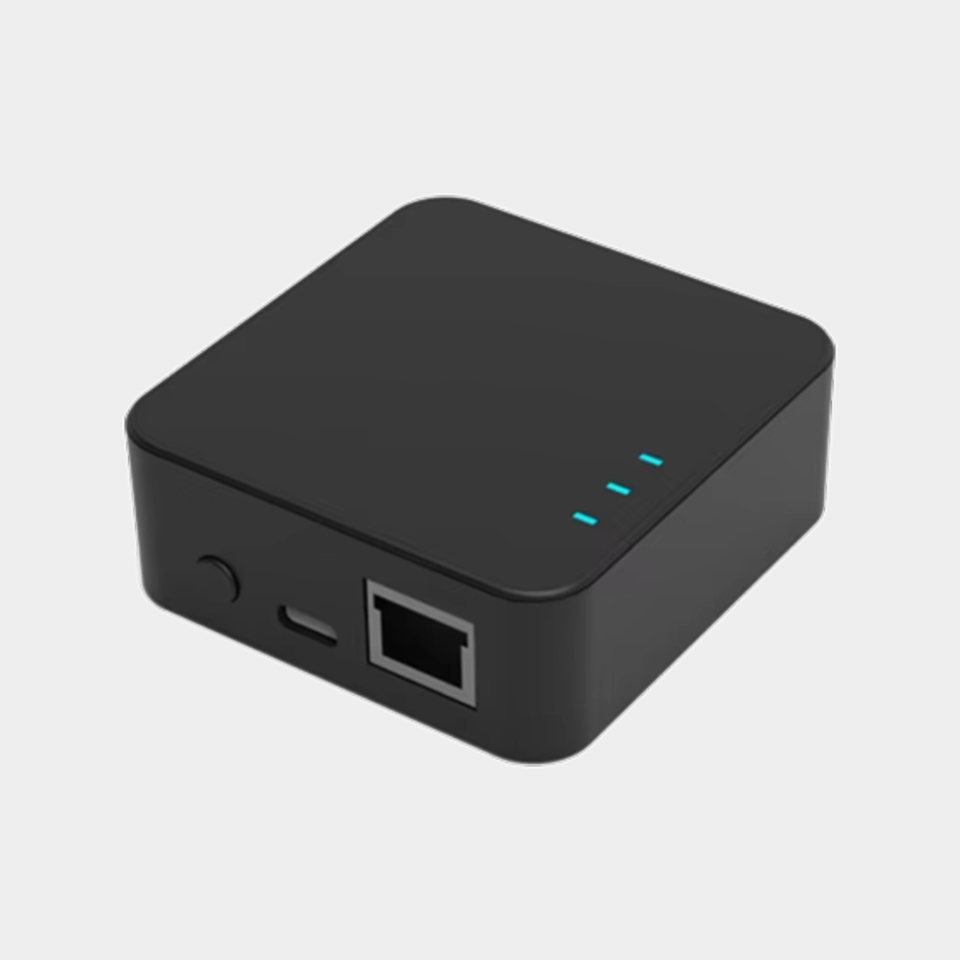

SpaceGateway-G1 is a network relay device that transmits UWB location data to the server within the GrowSpace Cloud System. After receiving the positioning data between tags and anchors, it transmits the data in real time to a local or cloud server via a LAN port. It is an essential device for integrating large-scale sites with a central monitoring system.
✅ Key Features
📡 Real-time data transmission via LAN (Ethernet)
🔌 USB Type-C power input for stable operation
☁️ Supports MQTT protocol — optimized for cloud integration
🔗 Compatible with GrowSpace SpaceCloud / SpaceCloud Pro
🧠 Specifications
MCU
Nordic nRF52832 (ARM Cortex-M4, 64MHz)
Wireless Communication
UWB (Decawave DWM1001)
Interface
USB Type-C (Power), Ethernet LAN (Communication)
Dimensions / Weight
71 × 72.5 × 27mm / 300g
Power Supply
DC 5V 2A
🌐 Role in System Architecture
Securely transmits communication between tags and anchors to the central server
Based on this data, the server performs functions such as real-time location monitoring, alert system, and data visualization
While a Listener connects to a single device for local testing, the Gateway acts as a network hub that connects multiple devices into an integrated system
🧪 Use Cases
🏪 Integration with central servers in smart factories
🚚 Integrated monitoring of forklift and worker movement
🏥 Collecting location-based data in hospitals, logistics centers, and exhibitions
📣 Integration with real-time alert systems and API-based operations
📌 SpaceGateway-G1 is a core device for connecting UWB-based location tracking systems with cloud and dashboard platforms. It serves as an intermediary hub within the sensor network, ensuring system real-time performance and scalability.
